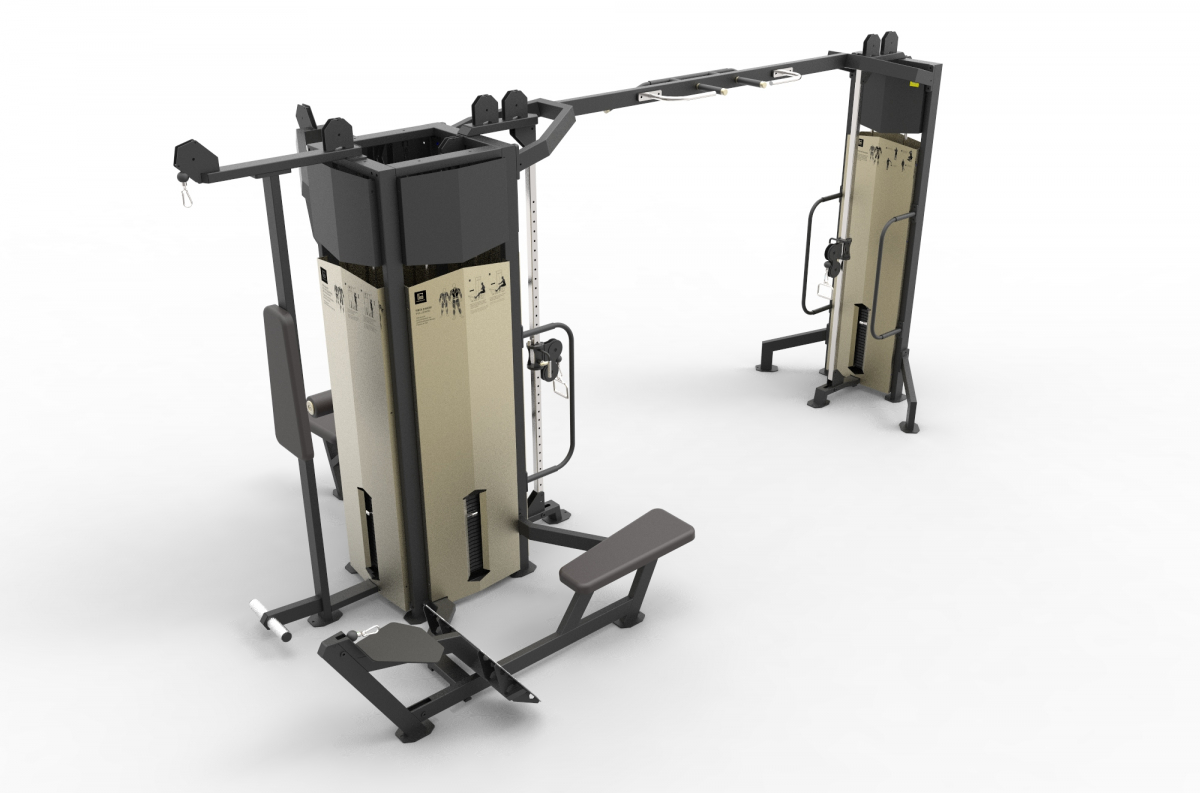

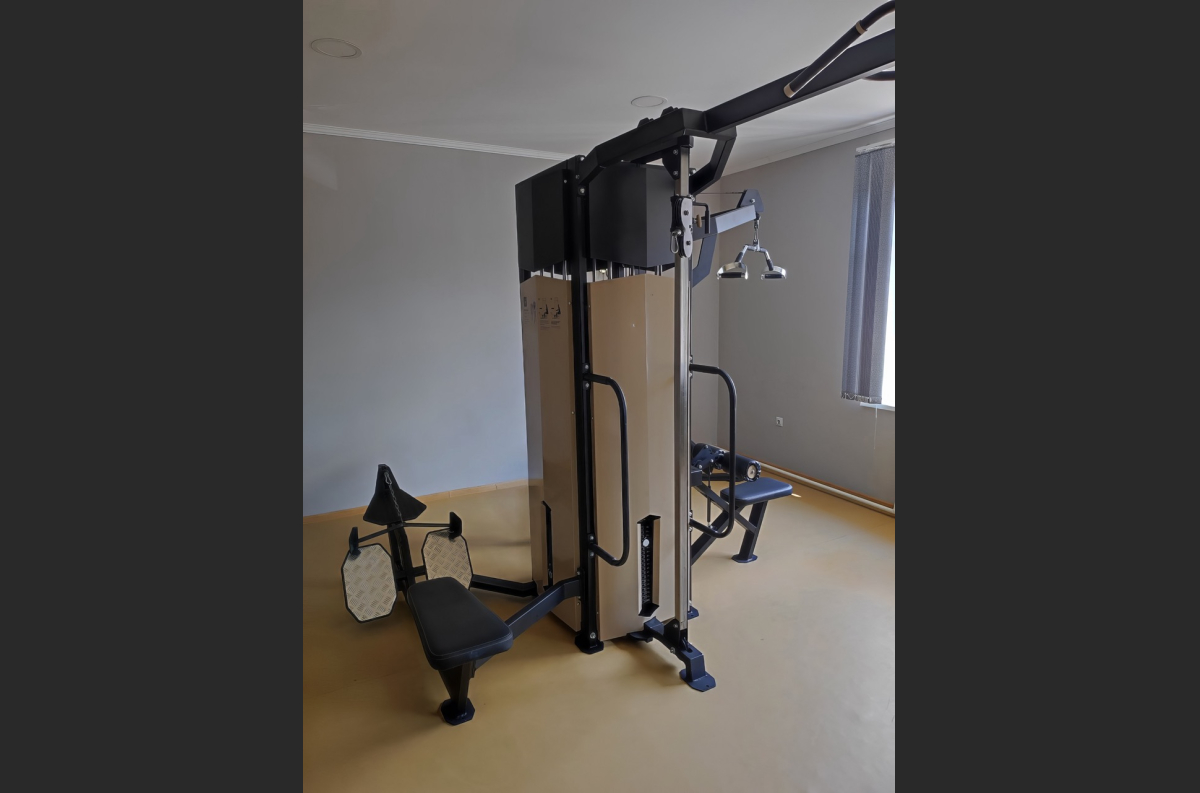

VB 404 Multistation 5-stack (with adjustable cable X-over


Category: professional.
A universal, multifunctional machine that allows you to train and form the relief of the main muscle groups of the body (pull-up, pull-down, the block frame).
Pull-up and Pull-down, the elements of the block of the frame allow you to perform a variety of traction on the upper and lower units for the development of the trunk muscles (the press, chest), arms (delta, biceps, triceps) and leg (gluteal muscles, back, outer and inner surfaces thighs).
The moving pulley is rotatable and has adjustment along the entire length of the guide rod.

Workstations and their features:
1. Longpull
• Existence of a dimensional integral  platform for an emphasis of legs with an antiskid aluminum slip.
• Existence of the rubberized platform for a removable handle.
2. Pulldown (optional: V-shape of the arrangement of the rollers for the support of the legs).
• Adjustment of an emphasis under knees (6 positions).
3. Triceps standing. (the presence of an oval pillow for back support and ease of exercise).
4. Height-adjustable guide rods (with the ability to perform leg swings).
Swivel traction blocks with 180° rotation angle. 18 levels of traction height adjustment.
5. Horizontal bar (straight and parallel grip) on both sides of the crossover with rubberized handles.

General characteristics:
• Existence of big handles in the module of an adjustable block frame, for convenience of performance of exercises (4 handles).
• The presence of a multi horizontal bar (3 pairs of anti-slip handles).
• Swiveling traction units in an adjustable block frame module, 180° swivel.
• Height adjustment of traction blocks (33 positions).
• Cable tension adjustment.
• Double-sided protection of the cargo block along the entire height of the simulator.
• Cable in wear-resistant braid.
• The presence of a magnet and a boundary wire on the lock of the cargo block.
• The simulator is made of steel profile 40x80 mm, wall thickness 3 mm.
• The frame is made of high-strength wear-resistant steel with a double polymer coating that provides protection against scratches and chips from the profile.
• Protection of weight stacks is multilateral along the entire height of the simulator (optionally one-sided protection),
• Guides - chrome-plated stainless steel.
• Frame painting is made by powder coating.
• Upholstery - special wear-resistant antistatic eco-leather.
• The weight of one cargo block is 100 kg (5 stacks), the weight of one tile is 5 kg.

Availability of additional accessories:
– shock-absorbing thrust bearings;
- 2 holders for water bottles on the frame of the simulator;
- Pull handles included.

Maximum user weight: 200 kg.

Length: 4895 mm
Width: 2625 mm
Height: 2420 mm
Net weight: 1020 kg.
