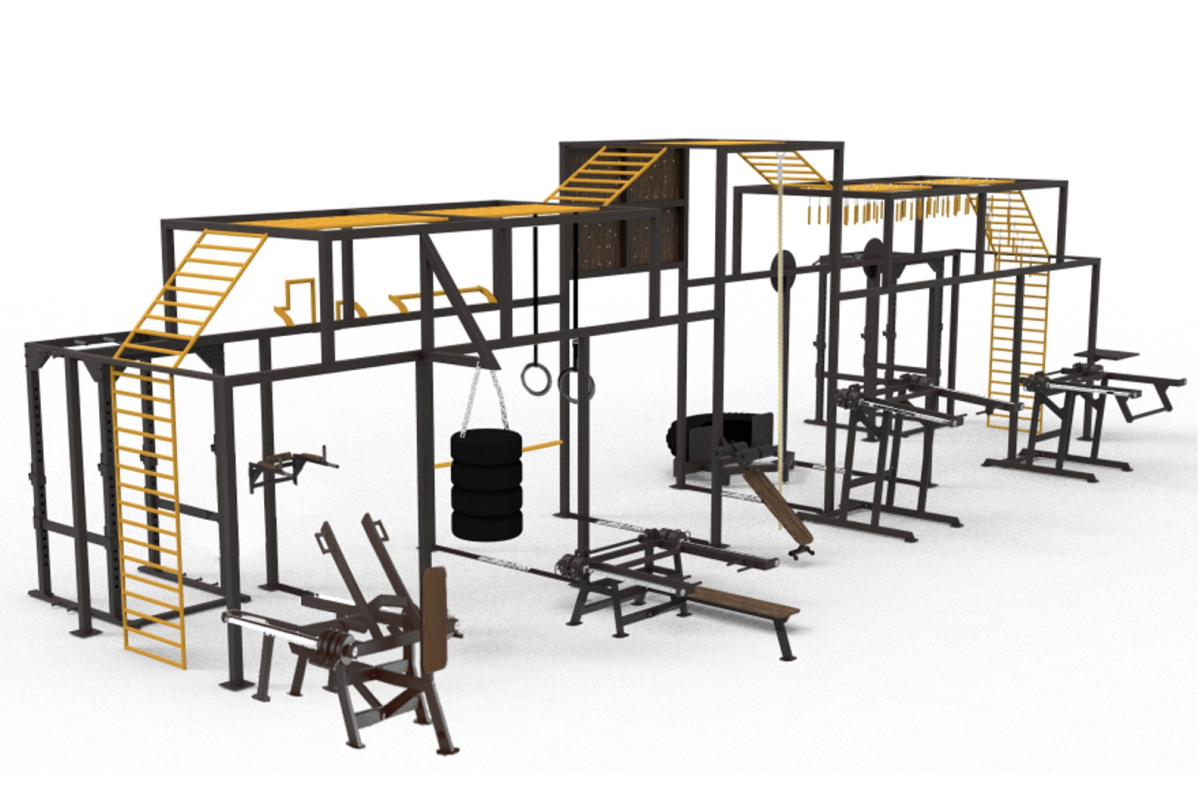

Workout Platform GW-8 – A Multifunctional Outdoor Sports Complex
Category: Outdoor Fitness Equipment
The structure is made using steel pipes with cross-sections of 80x80 mm and 80x40 mm, with a wall thickness of 3 mm.
The frame is coated with a double polymer layer, providing protection against scratches and chips.
All frame pipes are sealed with caps to prevent atmospheric precipitation from entering.
The Complex Includes:
A freestanding frame with mounted equipment, fitted with various types of training machines (weight stack machines, free-weight machines, bodyweight machines, and specialized equipment) securely attached to the frame.
Technical Specifications:
Frame with mounted equipment, overall dimensions:
- Height: 4 meters
- Width: 6 meters
- Length: 15 meters
Composition and Description of Mounted Equipment:
- Pull-up bar for reverse grip pull-ups (lying-inclined position)
- Multi-grip pull-up bar (narrow and wide grip with spheres; various grips)
- Bicycle pull-up bar (angled bar rotating around its axis)
- Deceptive pull-up bar (bar diameter at least 45 mm, rotating around its axis)
- Classic monkey bars
- Dynamometric monkey bars (fixed on a chain with a special suspension featuring two Ø13 mm holes and an inner ring diameter of 21 mm; designed as a "mace" structure with a round tube and metal sphere)
- Jump platform (20 mm thick, with a non-slip grooved surface)
- Boxing bag made of tires – 1 pc.
- Climbing rope – 1 pc.
- Gymnastic rings on straps – 1 set
- Swedish ladder – 2 pcs.
- Parallel bars for abs – 1 set
- Sit-up bench – 1 pc.
- "Pinocchio" (Pegboard) trainer – includes two stainless steel grips – 1 pc.
- Medicine ball target – 2 pcs.
- Power rack – 2 pcs. (stainless steel, 80x80x3 mm cross-section, perforated for barbell height adjustments; includes two special hooks protected with plastic/rubber to prevent polymer coating damage)
- Flippable tire with weights
The base frame is equipped with TRX strap hooks made from 6 mm-thick rod. Maximum user weight: at least 200 kg.
Additional Weight Stack Machines:
- SG 610 Bench Press (adjustable from 5 to 100 kg)
- SG 614 Shoulder Press (adjustable from 5 to 100 kg)
- SG 621 Standing Row (Lever Row) (adjustable from 5 to 100 kg)
- SG 616 Squat Machine (Multi-Barbell) (adjustable from 5 to 100 kg)
