GW-12 Multifunctional Set with Basketball Backboard

New!
GW-12 Multifunctional Set with Basketball Backboard
zoom Zoom image
GW-12 Multifunctional Set with Basketball Backboard GW-12 Multifunctional Set with Basketball Backboard GW-12 Multifunctional Set with Basketball Backboard GW-12 Multifunctional Set with Basketball Backboard
Manufacturer:
производитель legendgym логотип
Made
in Belarus
Беларусь (Минск)

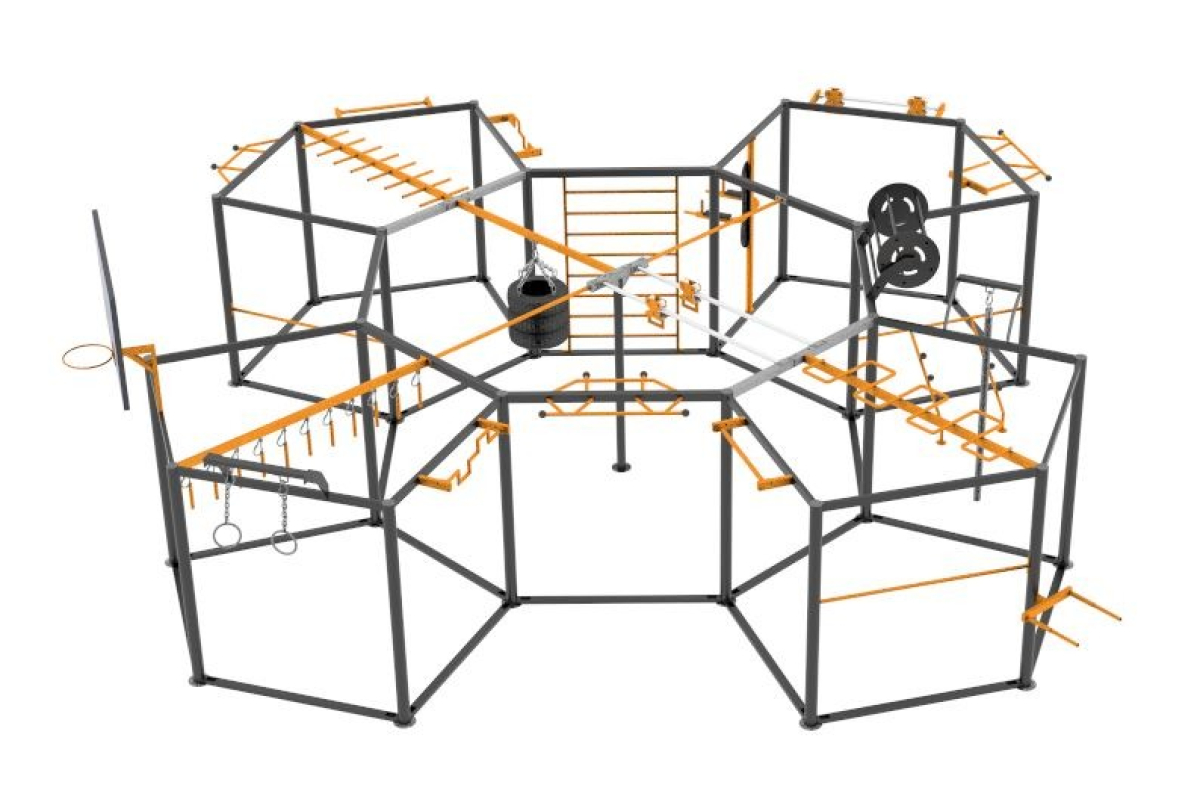

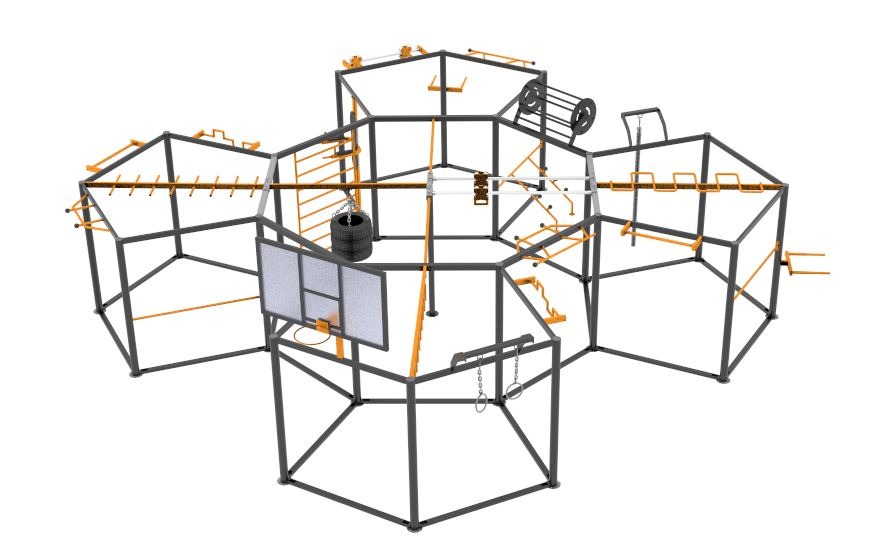

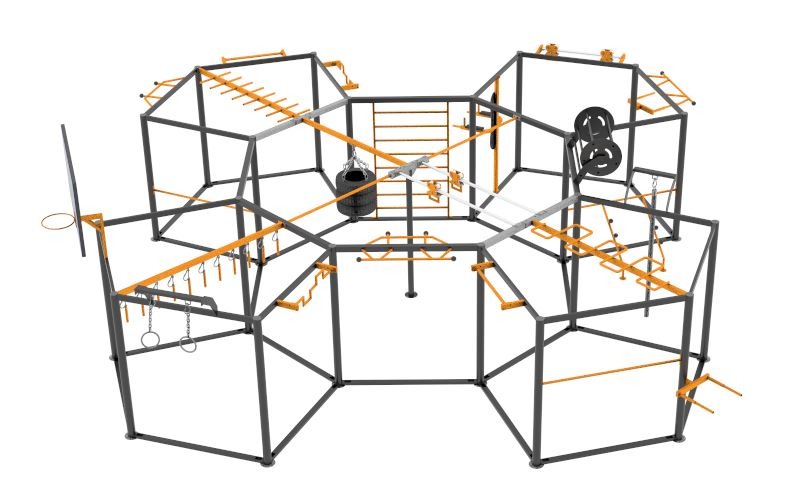

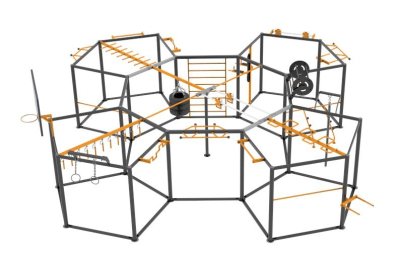

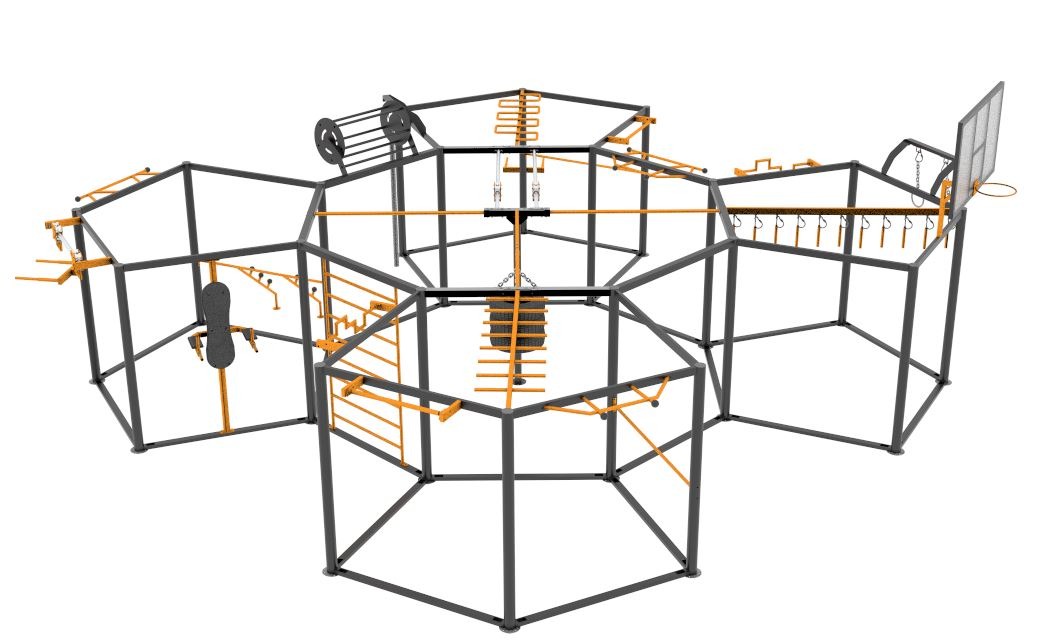

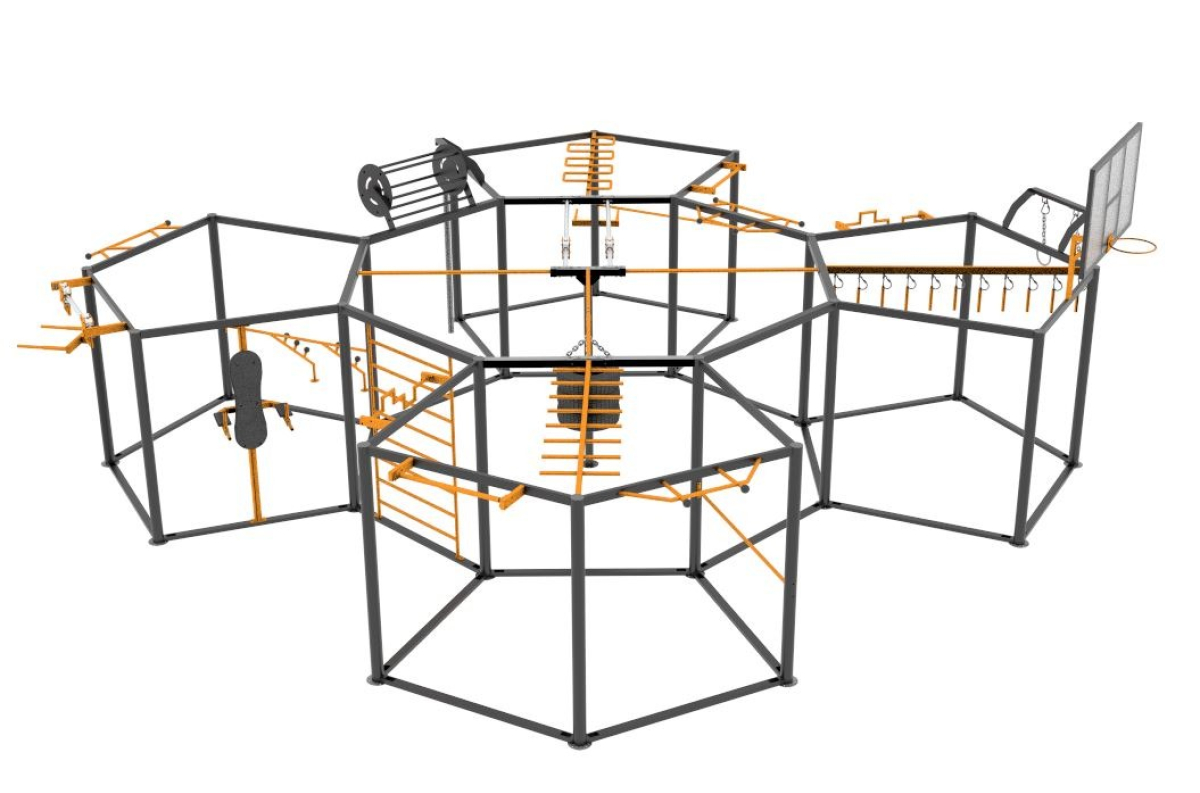

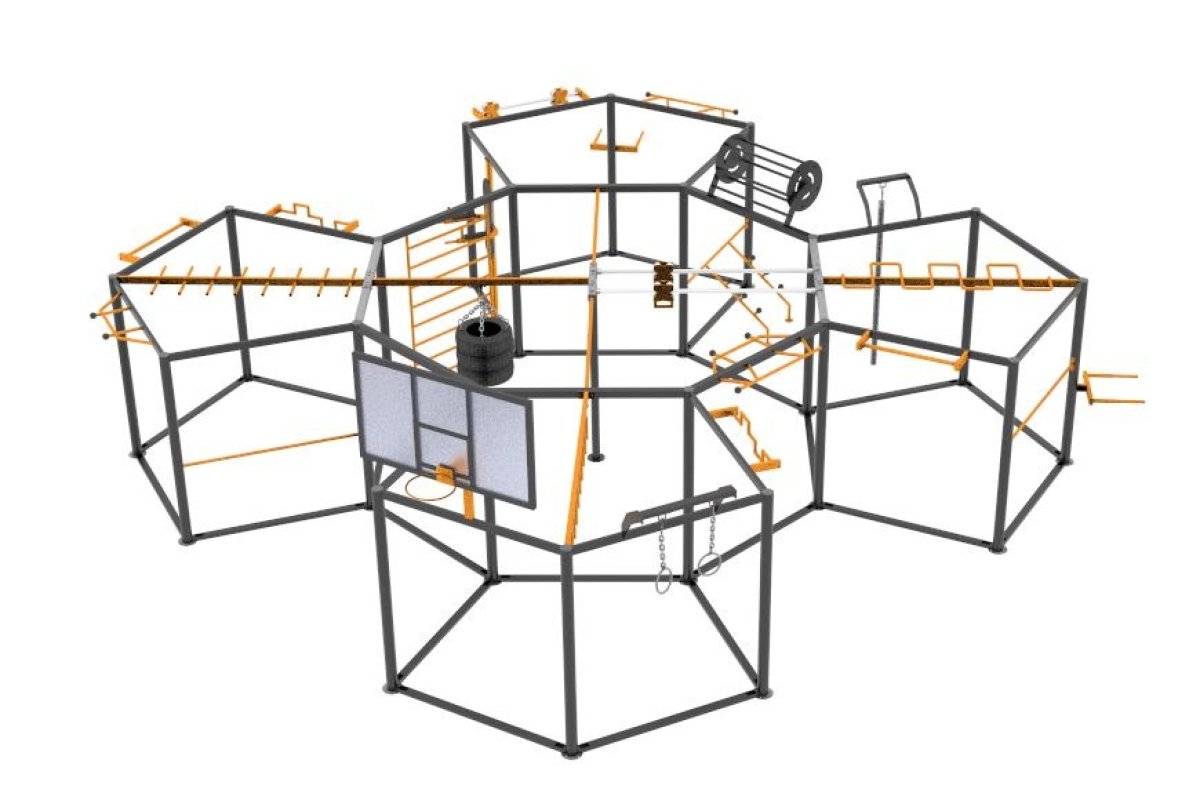

GW-12 Multifunctional Set with Basketball Backboard

Category: outdoor fitness equipment.

This multifunctional outdoor sports unit is designed for open-air installation. The structure is tip-resistant. For added safety, specific components and structural elements are secured with anchor bolts.

Technical Features:
The vertical frame posts are made of metal tubing with a 108 mm diameter and a 3 mm wall thickness. The round cross-section of the posts minimizes the risk of injury. The upper frame bracing consists of 80x80x2 mm tubing, while the lower bracing uses 80x40x3 mm profile tubing. Square and rectangular tubes are connected to the round posts using fasteners and a special slot in the square tubing. Locking the bracing tube slot to the load-bearing vertical posts provides extra rigidity and stability to the entire structure. A concealed connection point between the main frame and the bracing tubes helps extend the unit's service life. To prevent moisture ingress, all frame tubes are sealed with plastic or metal end caps.

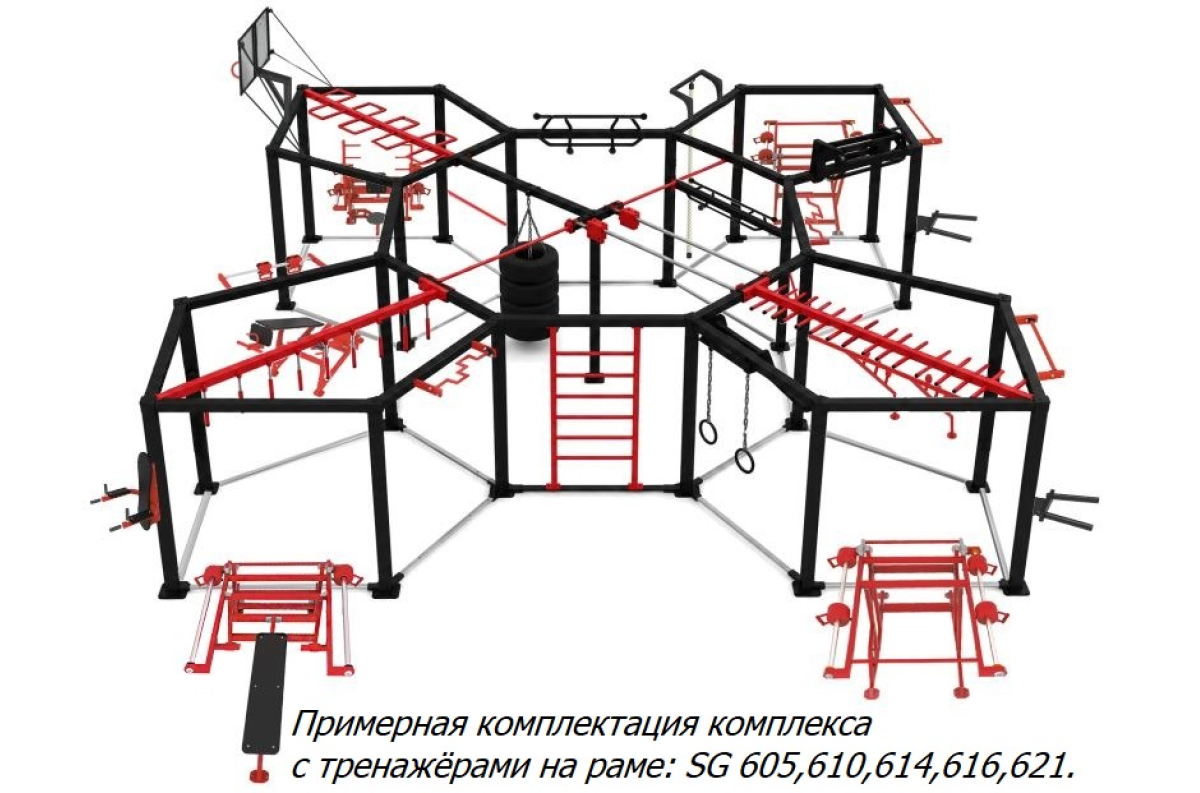

The unit can be equipped with strength training machines from the SG series: https://legendgym.org/en/service-view/sg/st/.

The outdoor workout area is accessible to people with disabilities and can be fitted with machines featuring fold-down seats: https://legendgym.org/en/service-view/sg/incluzive/.

The training machines can be installed as standalone units or attached directly to the unit's frame.

Frame components and attachments:

1. Bicycle-style pull-up bar
2. Deceptive pull-up bar
3. Gymnastic rings
4. Parallel bars
5. Standard pull-up bar
6. Multi-grip pull-up bar (wide and narrow grips with spheres)

Workout zone:
1. Wall bars (Swedish ladder)
2. Bicycle-style pull-up bar
3. Rotating pull-up bar
4. Wide-grip pull-up bar with spheres
5. Narrow-grip pull-up bar with spheres
6. Standard pull-up bar — 2 units
7. Adjustable pull-up bar
8. Adjustable monkey bars
9. Low pull-up bar
10. Abdominal dip bars
11. Push-up station
12. Basketball hoop
13. Curved monkey bars
14. Boxing bag
15. Climbing rope
16. Monkey bars
17. Parallel bars
18. Dynamometric monkey bars
19. Rotating drum pull-up bar

Overall frame dimensions:
Height — 2.5 m;
Width — 12 m;
Length — 12 m.
Weight: 1512 kgs.
